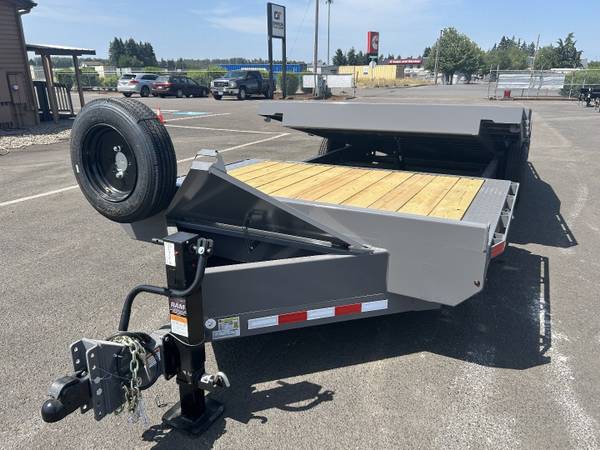

2025 Midsota 8.5x24 (18+8) Split Tilt Equipment Trailer 17.6K GVWR - $13,895 (Coburg)

2025 Midsota 8.5x24 (18+8) Split Tilt Equipment Trailer 17.6K GVWR 1 thumbnail

condition: good

make / manufacturer: Midsota

model name / number: Midsota Open

paint color: grey

year manufactured: 2025

more ads by this seller

QR Code Link to This Post

The TBWB Series wide body tilt trailer is built for maximum convenience and durability, offering a smooth tilting bed for easy loading and unloading. Designed with premium materials and industrial-strength features, this tilt deck trailer is ideal for hauling equipment, vehicles, and heavy loads. With a robust frame and innovative design, these tilt bed trailers deliver long-lasting performance, even in demanding work environments.

Model: NTWB24-BP-176
Type: Wide Body Tilt Equipment Trailer
GVWR: 17,600 lbs
Curb Weight: 4,760 lbs
Payload Capacity: 12,840 lbs
Deck Length: 24' total (18' tilt + 6' stationary)
Deck Width: 82" between fenders / 102" overall width
Deck Height: 28"
Tilt Angle: 12°
Main Frame: 8" x 3" tube steel
Tongue: 6" x 4" tube steel
Crossmembers: Grade 50, 3" channel, 16" spacing
Decking: 2" x 8" green treated wood
Finish: Industrial-grade polymer over PPG polyurethane primer
Fenders: Steel tread plate, drive-over
Coupler: 2-5/16" EZ latch adjustable
Jack: 12K bolt-on spring return
Plug: 7-way cold-weather (-85°F rated)
Wiring: Fully enclosed, no exposed wiring
Lights: Full LED, DOT compliant
Brakes: Self-adjusting electric brakes
Axles: Tandem 8,000 lb torsion axles
Suspension: Slipper spring
Tires: 215/75R17.5 H-range, 16-ply radial
Wheels: 17.5" 8-bolt steel, black
Tie Downs: Stake pockets and rub rail
Breakaway Kit: Battery, switch, and lanyard
Warranty: 5-year limited frame warranty

STOCK CO 123393

Oregon Trailers
90711 Roberts Rd.
Coburg, OR 97408
541-952-1007
